Sunday, March 11, 2012

Another program is being installed. Please wait until that installation is complete, and then try installing this software again.


Problem

Today I planned to install ASP.NET MVC 4.0 beta for Visual Studio 2010. When I started the installation, it gave me an error message saying:

"Another program is being installed. Please wait until that installation is complete,
and then try installing this software again."

At that time I did not have any installation running. Then, I restarted my computer as re-boot can be a magical treatment for many Windows issues. But in this case it did not work and same error continues to come.
After doing some research I solved this issue. FYI: I was using a 64 bit Windows 7 Operating System.

Solution

  1. From Start menu run services.msc
  2. Find WindowsInstaller from the services link.
  3. If you see it is started and set to automatic, disable it.
  4. Re-start your pc.
  5. Again go to services.msc.
  6. Set WindowsInstaller to start as "Manual".
  7. Now start your installation.
In my case the above solution worked. Hope it will do for you too.

How to download powerpoint file using C#/Asp.net


Introduction

Recently I had to write few lines of code to download power point presentation file from one of my asp.net website. I would like to share the block of code I used for this purpose.

if (File.Exists(Server.MapPath(file)))
{
   Response.ClearHeaders();
   Response.Clear();
   Response.ContentType = "application/x-mspowerpoint";
   Response.AddHeader("Content-Disposition", "attachment; filename=" + file);
   Response.WriteFile(Server.MapPath(file));
   Response.Flush();
}
Here Response.ContentType should be set correctly. I have used  "application/x-mspowerpoint" for powerpoint. You need to set the correct ContentType. For example, for msword you should set application/msword, for gif image you should set image/gif, for pdf you should set application/pdf etc.
Here is the reference to set Response.ContentType :

Another important information:

To have it work correctly in IE you need to write the code in Page_load event. So, for this you may create a page - Download.aspx and redirect to that page when you click download button with file information in the querystring.

Hope it helps.

Get Top X rows from a table

Sometimes, we do very ugly things just because of missing simple tricks.

I believe all of the devs who work with SQL use SELECT TOP command as they need. This is a very simple SQL command.

SELECT TOP 10 * FROM YOURTABLE

Now, sometimes you need to use variable instead of constant number (say 10). If you write the query as:

DECLARE @count int
SET @count = 20
SELECT TOP @count * FROM YOURTABLE

This will give you a syntax error.

To solve this issue, we sometimes write dynamic SQL (SQL statements constructed inside a string variable) and execute that.

But we all know dynamic SQL is always bad for many reasons and we should avoid that as far as we can.

We can avoid dynamic SQL in this scenario very easily with a simple trick. Once you know that, you will laugh at yourself if you really used dynamic SQL for this scenario.

The Solution:

DECLARE @count int
SET @count = 20
SELECT TOP (@count) * FROM YOURTABLE

Did you mark the trick? Yes, you just need enclose the variable with a Bracket ().

By the way, this trick is Microsoft SQL Server specific. Experts from Oracle or mysql may post alternatives from those platforms.

Monday, March 5, 2012

DOMAIN DRIVEN DESIGN - Clear Your Concepts Before You Start!


Start Developing a New Application

What we traditionally do when we start a business application? We read the spec and find the functionalities. We break down tasks. In most of the cases the goal of the breakdown is to come up with an estimation and plan of works. We do the estimation. We distribute the works among team members. We design the database schema - sometimes by the team leader or sometimes by the respective developer. We start coding.

So?  What’s wrong with this approach? We have been doing good! Don’t we?
The answer is YES and NO! Yes we are doing good in delivering our projects. But NO! We are not doing good in maintaining and extending our projects!

Think about all of the projects you have worked last few years in the traditional approach. Did you ever face any of the issues below?

  1. Your project has the same functionality implemented in the same way or different in different places.
  2. You have more than one object for the same item.
  3. You have objects that have properties that are not actually attributes of that object.
  4. You have no or very poor relationship among related items.
  5. Looking at your objects it is not possible to understand what actually the whole application is all  about.
I am sure you have been facing these issues regularly. But do you know why?  The reason is, traditional approach do not guide us designing the system in Up to Bottom fashion. Rather it tempted us to design the system in Bottom-Up fashion. See, when you design a system you need to know what as a whole the application will do? What is the goal the client is trying to achieve? Then, from the top level goal you come up with different smaller functionalities that will eventually allow the users to achieve the top level goal.

But when you design in bottom-up approach, you first design for the granular functionalities, and you have little or no knowledge how this functionality will be used from the Top level and how the Top level functionalities will actually look like.

Have you ever heard that a developer of your team is talking like he does not have the domain knowledge of the whole application? Perhaps yes! I think you can understand the reason. Cause, the design of the application does not represent the domain of the system. And so, developers know only the portions they worked. This is Sad! Isn’t it?

So, is traditional approach – “Designing the application starting from database” a throw away concept?  Not really! But if you have a complex application to develop, this bottom-up design approach does not dictate you to come up with a proper object oriented design.

What is the solution then?

The solution is DDD (DOMAIN DRIVEN DESIGN).

What is DDD?

Domain-driven design is not a technology or a methodology. DDD provides a structure of practices and terminology for making design decisions that focus and accelerate software projects dealing with complicated domains.
- Wikipedia

Concepts to cover in this article:

  1. Understanding the Domain.
  2. Ubiquitous Language.
  3. Contexts and Bounded Contexts.
  4. Entities and Value Objects.
  5. Aggregates and Aggregate Roots.
  6. Persistence Ignorance.
  7. Repository.
  8. Domain Service.
In this article I will try to avoid becoming too technical, rather I will try to go through different concepts of DDD being close to the real world.  I will try not to show any code here. Because I believe if you understand the concept and starts thinking in DDD way, implementation is easy. The toughest part is to tune your thinking process!

Understanding the Domain

A sphere of knowledge, influence, or activity. The subject area to which the user applies a program is the domain of the software.
- Wikipedia

Do you get a feeling what is domain from this definition?  Can you tell what is the domain of the project you are working on at this moment? Can you tell what is the domain of the famous website YouTube?

In this article I would like to go through a real world example to give you the feeling how to start analyzing your project driven by your domain. This example may not be related with application development but as the goal is to tune our thinking top to bottom manner, it will be useful. But again, we will go through the technical terms of DDD too!

Let’s say you are engaged to design a building. The requirement is:

  • You have a defined amount of land
  • Your building will have 6 floors.
  • Each floor will have 4 apartments.

What is your domain here?

The domain is Building(?). It could be. But note that, if you consider Building as your domain you may miss few granular details for your requirement. The building you are going to design must have design for apartments where people will live. So, a general term “Building” can make us miss few details. So, we may narrow down our domain to “Residential Building”.

Now, when you talk about your work with engineers and also with the people who engaged you to design the building, the term “Residential Building” is more meaningful for everybody concerned. Did you mark very small change in language here? The contractor is telling you to design a building where there will be 4 apartments in each of the 6 floors. Now, if you send an engineer to the site telling him we will need to construct a building there, they might not consider many attributes that a residential building must have. On the other hand if you use the term “Residential Building”, most likely he will come with a valid analysis.
This is how we come to an “Ubiquitous Language”.

Ubiquitous Language

The concept is simple, that developers and the business should share a common language that both understand to mean the same things, and more importantly, that is set in business terminology, not technical terminology.

More Example of Ubiquitous Language:

Example 1:

Wrong Language:

The length and width ratio of the smaller bed rooms would be 4:3.

Correct Language:

The children's bed room’s length will be 20 ft and width will be 15 ft.
Note that, to the owner of the building “smaller room”, “ratio” - all these things could be very technical terms. Rather it is easier for him to understand children's room, guest room, living room etc. And explicit measurement is more meaningful to him.

Example 2:

Let us see an example from software perspective.

Wrong language:

In search functionality we will consider inflectional and thesaurus feature of sql server to make the search more relevant. Additionally we will also exclude the stop words from the search to make it more accurate.
Note that, your domain expert may not be a technical person and thus he may not understand what you meant by the words “Inflectional”, “Thesaurus”, “Stop word” etc.

Correct language:

In the search functionality we will consider all the synonyms of the search phrase so that it does not exclude relevant results. Moreover we will not differentiate any search word by its number (singular or plural), tense, participle etc so that the result becomes more accurate. Additionally as expected in any search, we will ignore all the noise words that do not have any value in the search. Such noise words could be “am”, “but”, “where”, “about” etc.

Do you see the difference in language here? Really a correct language can make all the involved parties think and understand in the same way.

Let’s come back to our “Residential Building” domain. Look, you can proceed with the residential building design as a single task and address the whole thing together. But will it really be very wise way to do? Note that, if you just consider this a single unit of work you may miss many things. Designing a building is related to so many things. For example: you need to consider ventilation, utility, parking space, community space etc.

Now you see, different other contexts are coming up. This is how the concept “Context” and “Bounded Context” comes up in Domain Driven Design.

Contexts and Bounded Contexts

A Bounded Context can be considered as a miniature application, containing itss own Domain, own code and persistence mechanisms. Within a Bounded Context, there should be logical consistency; each Bounded Context should be independent of any other Bounded Context.
More Example of Bounded Context:

Think of an e-Commerce system. Initially you can tell it is an application of shopping context. But if you look more closely, you will see there are other contexts too. Like: Inventory, Delivery, Accounts etc.

Dividing a large application among different bounded contexts properly will allow you to make your application more modular, will help you to separate different concerns and will make the application easy to manage and enhance. Each of these Bounded Contexts has a specific responsibility, and can operate in a semiautonomous fashion. By splitting these apart it becomes more obvious to find where logic should sit, and you can avoid that BBOM (Big ball of mud) J

What is BBOM?

A Big Ball of Mud is a haphazardly structured, sprawling, sloppy, duct-tape-and-baling-wire, spaghetti-code jungle. These systems show unmistakable signs of unregulated growth, and repeated, expedient repair. Information is shared promiscuously among distant elements of the system, often to the point where nearly all the important information becomes global or duplicated. The overall structure of the system may never have been well defined.
- Brian Foote and Joseph Yoder, Big Ball of Mud. Fourth Conference on Patterns Languages of Programs (PLoP '97/EuroPLoP '97) Monticello, Illinois, September 1997

Our all time objective should be to avoid BBOM

Again with the “Residential Building Domain”. So, we could have several bounded contexts:

  • Electricity supply
  • Car parking
  • Apartment
  • Etc.

Let’s talk about the apartment. The apartment is basically a combination of different rooms. The rooms have different elements inside like windows, doors etc. Now I have 2 questions to you about the windows of the room.

    Question1: Can you imagine a window without a room?
    Question2: Does a window have any identity without the room it is residing in?

Answering these questions will expose the following concepts of DDD.

  •     Entity.
  •     Value Object.
  •     Aggregates & Aggregate root.

Entity

“This is my Entity, there are many like it, but this one is mine.”

The key defining characteristic of an Entity is that it has an Identity – it is unique within the system, and no other Entity, no matter how similar is, the same Entity unless it has the same Identity.

Examples:

  1.     Your bed room in the apartment.
  2.     Contract in Facebook.
  3.     Article in CodeProject.

Value Object

The key defining characteristic of a Value Object is it has no Identity. Ok, perhaps a little simplistic, but the intention of a Value Object is to represent something by its attributes only. Two value objects may have identical attributes, in which case they are identical. They don’t however have any value other than by virtue of their attributes. Another aspect common to value objects is that they should probably be immutable, once created they cannot be changed or altered. You can create a new one, and as they have no identity, that is just the same as changing another one.

Example:

  1.     Windows in the rooms
  2.     Address of any person in your website.
  3.     SearchCriteria of your search.

Note:  A value object can become an entity depending on the situation. Can you find a scenario like that? If the requirement of the search functionality of your application says that, the search criteria should be saved in the database and the user can do the same search from the list of saved search criteria’s. In this scenario SearchCriteria has its own identity and thus it is an entity instead of being a value object.

Now you know what entity is and what value object in DDD is. In domain driven design entities and value objects can exist independently. But in some cases the relation can be such that, an entity or VO has no value without its context.

Example:

  1.     A window can only be defined if there is a room.
  2.     An order note can only exist if an order is placed.
  3.     A question detail can only be there if a question is asked.

Very simple is not it? Believe me, now you know what Aggregate and Aggregate root is in DDD.

Aggregate and Aggregate Root

In the examples given above –

    Room, Order and Question are our aggregate roots.
    On the other hand window, order note and question detail are our aggregates.

“A cluster of associated objects that are treated as a unit with regard to data changes.”

All objects of the clusters should be treated as aggregate.

All external access to the cluster is through a single root Entity. This root entity is defined as aggregate root.

Example:

    A question detail should no way be saved unless the corresponding question is saved.
    A question detail should no way be retrieved unless the  corosponding question is retrieved.

Here Question is the Aggregate root and Question Detail is the aggregate. Aggregates and Aggregates Root are very important concepts of DDD.

So far we have talked about domain, objects/entities, contexts, aggregates etc. What about the Database? Is that something we have missed? Isn’t it something should come in the design?

The answer is NO!  DDD is a persistence ignorant approach.

Persistence Ignorance

In domain driven design your objective is to create a model of the domain. You need to identify what are the items (objects) you need to accomplish the desired functionalities of your application. You need to identify the relationships among different objects and how they interact among themselves. You need to find if the business goal of your client is achievable using your domain model. Where is the existence of database here?  You do not need to know how and where the data of your domain will persist or even if the data do need to persist while you do the model of the domain.

This ignorance about your persistence medium will make your domain model free from any coupling with the persistence layer of the application. This will eventually separate the concerns of the persistence and its communication mechanism from your domain model. In result your application will be free from coupling with any data store and will be very easily unit testable.
But Yes! In a real application you do need to have a database. But your domain model will have no knowledge about that. All it will know is the “Repository” which will eventually manage your application’s persistence concern.

Repository

Can you tell me what the meaning of the English word “Repository” is?

Repository commonly refers to a location for storage, often for safety or preservation.
- Wikipedia

As I have already said your domain model will not know any database. What it will know is, there is a repository in the system and that repository will be responsible to store your data and to retrieve your data. It is no way a concern of your domain model how and where data will persist. So, it can be Sql server, oracle, xml, text file or anything else. I hope now you got a sense what a repository means in DDD.

Let’s become little more technical.

Repository Mediates between the domain and data mapping using a collection-like interface for accessing domain objects. It is more like a facade to your data store that pretend like a collection of your domain.

Repository Is Not A Data Access Layer.

Note that repository doesn’t talk in terms of “data”, it talks in terms of Aggregate Roots. You can tell your repository to add an Aggregate Root into its collection, or you can ask it for a particular Aggregate Root. When you remember that Aggregate Roots may comprise one or many Entities and Value Objects, this makes it fairly different to a traditional DAL that returns you back a set of rows from your database tables.

Implementation Strategy of Repository:

As I said, Repository is a design pattern that is used in DDD to handle the persistence concern. The detail of this pattern is out of the scope of this article. However, here I am trying tell in minimum how we may achieve a repository implementation.

  1. 1st of all you will have an interface - IRepository that should be generic.
  2. You will have an abstract implementation of the IRepository interface.
  3. You will have interface INhRepository  for your persistence mechanism (i.e. Nhibernate) this will inherit from IReposiroty
  4. You will have implementation of INhReposiroty in a class like “NhReposirory”.
  5. Finally you may have a generic implementation of the repository that will have default implementations of all the common methods of the repository.
  6. Like NHGenericRepository that inherits from NhRepository and implments IGenericNhReposirtory.
  7. You will specific repository for you Aggregate Roots, that will be extended from NHGenericRepository.
  8. Your application will use service locator to find which repository the application will use.

Domain Service

Domain service is another important concept of DDD. If Entities and Value Objects are the “things” in your domain, the services are a way of dealing with actions, operations and activities.

Shouldn’t Logic Be on the Entities Directly?

Yes, it really should. We should be modeling our Entities with the logic that relates to them and their children. But, there are occasions when we need to deal with complex operations or external responsibilities or maybe we need to expose the actions of the aggregate roots to the external world. This is why creating a domain service for different aggregate root is a good idea. You can consider the domain services as fa├žade layer of the business logics and operations of your domain.

End Words:

In this article I have tried to introduce the basic concepts and terminologies of Domain Driven Design with examples of real world. The goal was to make you feel comfortable with DDD world. But really developing applications with DDD is a big challenge. The more you love and practice DDD concepts while you design your object model, the more accuracy you will gain in your design. As I said before the most important thing is, you must think in Domain Driven Way. If you don't you will hugely suffer when your application is a real complex one.

Great DDD Resources

  1. http://www.dddcommunity.org/
  2. http://thinkddd.com/
  3. http://www.infoq.com/minibooks/domain-driven-design-quickly
  4. http://thinkddd.com/assets/2/Domain_Driven_Design_-_Step_by_Step.pdf
  5. http://www.dddcommunity.org/library/young_2010
  6. http://www.dddcommunity.org/library/evans_2010
  7. http://blog.fossmo.net/post/Command-and-Query-Responsibility-Segregation-(CQRS).aspx
  8. http://msdn.microsoft.com/en-us/library/ff649690.aspx

Thursday, February 16, 2012

Be Very Careful When You Write Sql Trigger

In many scenarios we write triggers on database tables. Before writing a trigger we need to understand what trigger is and how exactly it works. Because, lack of clear knowledge on triggers can ake your life difficult. Trigger is actually a procedure that runs in response of an event fired due to performing some operations on database tables. The events could be insert, update or delete. Now, the question is how database handles the execution of a trigger when it fires?

If you write a trigger for insert operation on a table, after firing the trigger, it creates a table named “INSERTED” in the memory. Then it performs the insert operation and after that the statements inside the trigger executes. We can query the “INSERTED” table to manipulate or use the inserted row/s from the trigger.

Similarly if you write a trigger for delete operation on a table, it creates a table in memory named “DELETED” and then deletes the row.

More importantly you must understand how an update trigger works. After firing an update trigger it works in the following sequence:

i. All constraints are enforced.
ii. All declarative referential integrity (DRI) constraints are enforced (via foreign keys).
iii. The inserted and deleted tables are created in memory for use within the trigger.
iv. The triggering action (in this case the UPDATE statement) is executed.
v. The AFTER UPDATE trigger executes.

From the above steps you can see that, no table called “UPDATED” is created. Actually on database no operation called update executes. Internally it actually delete the rows to be updated and keep the deleted rows in DELETED table. The updated rows that are sent to update the table are kept in INSERTED TABLE. After the old rows are backed up to the DELETED table, updated rows from INSERTED tables get inserted into the targeted table.

So, from an update trigger we can access both INSERTED and DELETED table though directly we may not execute any insert or delete operation. This is a very important concept for us. Here I am providing the mistakes you may make if you are not clear on this.

Consider the following trigger:

AFTER UPDATE ,INSERT , DELETE
AS
if(exists(select Contact_Id from inserted where Contact_id is not null))
begin
--Do your operation
end
if(exists(select Contact_Id from deleted where Contact_id is not null))
begin
--Do your operation
End

Here the developer wrote the trigger for all the events on the table and expecting to do some operation if Contact_ID is inserted, deleted or updated in to the table.

Now note carefully the mistakes that the developer did in this trigger. For example an operation is executed on the table which updates some other field other than Contact_ID. Now if Contact_ID is a not null column of the table we will never get null from INSERTED and the DELETED table. So, here even though Contact_ID is not updated the operation of the triggers will execute.

It is not finished yet. It has more problems. The developer wrote the 2nd if condition assuming that DELETED table will be created only when trigger fires for any Delete operation on the table. But you see, as a matter of fact this table is also available when the trigger fires for update operation.

The situation will be the worst if the developer thinks the first if statement will be successful for INSERT and UPDATE operation and 2nd if statement will be successful for DELETE operation. Note that, in reality both 1st and 2nd if statement will be successful for update operations! So, if the developers want some code to execute for all the operations he might do the mistake of writing the same code in both 1st and 2nd if block. This will in turn execute the same operation twice while any update operation is done. Doesn’t it sound very silly and surprising? Yes. But if you are not careful these mistakes can happen anytime and can take you to hell from the heaven you are currently in.

Another Mistake:

Say you are updating 5 rows of a table with a single update statement. Then, in trigger you are querying as follows:

SET @IsPublished = (SELECT [IsPublished] FROM [inserted])


Here, you are expecting 1 row in the INSERTED table all the time. You may think internally sql server creates separated INSERTED AND DELETED table for each of the 5 rows. But No! In reality it will create 1 INSERTED table and 1 DELETED table. Each of the tables will contain all the 5 rows. So, the above sql statement will return an error. You should always be careful of this.

So, while writing a trigger keep an eye on the following points:

1. If you write a single trigger for multiple event, be very careful to ensure that your trigger does not execute for unwanted events.
2. When writing update trigger always check if your desired column is updated by using IF UPDATE(ColumnName).
3. Be very careful in querying INSERTED and DELETED table.
4. Try to avoid cursor from the trigger.
5. Ensure that your trigger is not creating any deadlock/Infinite loop on your database.

Wish you write error free triggers and save hours of trouble shooting!

SOLIDify your software design concepts through SOLID


Starting With Real World

If you want to create a dolls house you may easily do that by your own. It does not necessarily need any upfront design. You just gather some materials (say papers) and start building from your imagination.
Give the doll’s house to your daughter. She will play with this and after some time she will not like it anymore. Then you throw it away and build another one.
Now your wife is asking you to build a house on the land you have just purchased. Is it possible for you to build the house by your own? I know this is an invalid question. Well, is it possible for you to start building the house if you are provided 100 people with you? The answer is no. If I ask why? You will instantly give the obvious answer – “Building a house involves lot of concerns and you need experts to handle those concerns before starting the real construction work.”
Some concerns could be
1. Your wife’s dream about the house.
2. The maximum area of land availability.
3. Your budget.
4. Core architectural design.
5. Floor planning.
6. Utility planning.
7. Car parking.
8. And many more.
So, the first point you need to start the work is to talk with your wife generously so that you know what exactly she wants at her house. Then go to the construction company who will work as a contractor to build your house. Tell them your expectation, area and budget. You will then be sent to the civil engineer and the architect. They will know your requirements in detail and will do thorough analysis on that. Later the civil engineer and the architect will come out with a design and plan of construction. They will consider all the concerns and are expected to handle those with maximum efficiency. The best they do it, the best your house will become. On the other hand if the architect and civil engineer do poor work, you house will suffer in the long run.
So, it is not you and the workers who are responsible for a great house to construct but it is the architect and civil engineer who can make it happen of-course backed by skilled workers who are capable of working according to plan. If your design and architecture is great, the hardest part is done.
I am sure as you are reading this article, you are a software engineer. Can you relate this house construction paradigm with the software development world?
Let us construct your house hypothetically as if it is a software and try to relate the design strategies of this house construction with some software design principles so that we can realize the necessity of following standard principles while design our software.
First of all who is the client of this house? It is primarily your wife who provided you the specification of her expectations from the house. Then you are also the client who will be the point of contract from client side. The construction company is the software house who is going to work to build your house. So, an agile environment is setup that can ensure the best production as both parties will be in close touch all the time. Now what?
Now, the architecture and civil engineer will start analyzing your specification to come up with a good design. In reality building a house is a very big task. So, we will not touch too many points to make it simple. The goal will be, the designer should design your building in the best way and we will see it through some example building construction concerns.


Base foundation of the building:


The civil engineer will design the base foundation of the house. He perhaps will consider the following while doing the design:
1. Maximum area of land.
2. Maximum number of floors can be accommodated.
3. How many floors you will want to construct initially.
4. Your plan of extension in future.
Then perhaps,
5. How deep the foundation will be.
6. How many piers will be needed and how they will be distributed.
7. Etc.
During designing the base foundation plan, the civil engineer will need to work closely with the architect so that the distribution of piers does not impact the interior of the building.
Now, once the foundation is done, it is closed. The piers will be extendable and on top of that your house will be extended floor by floor. Let’s say you will construct your house initially with 2 floors. After some years the world under go in recession and you lost your job. So, you want to construct 2 more floors on top of your house using your saved money so that you can give that in rent and earn some continuous money. Let’s say, the engineer had not considered that you may want to construct more floors on your house. So, he designed the foundation just for 2 floors and at the top the piers are sealed. So what will you do now? Unfortunately you have no option but demolishing your house, re-do the foundation and construct it again. So, the engineer could have killed you. Is not it?
On the other hand, if the engineer is good, he will do the foundation so that you can build more floors on top of it and the piers on the top floors are extendable. So, your base foundation is closed for any modification but still open for extension. Here we have learned a very important principle that is also applicable in software paradigm. That is, you must build your base classes of the software with enough knowledge of the module you are developing and then expose the extension points from the base class so that it can be extended by the child classes.
In one sentence we can tell “Your base classes will be closed for any modification and still open for extension.” This principle is formally known as Open-Close Principle in software world.
More example of Open-Close Principle:
See the example codes below. If you understand the Open Close Principle you will easily see how the 1st example violating the Open Close Principle and how the second example honoring it.

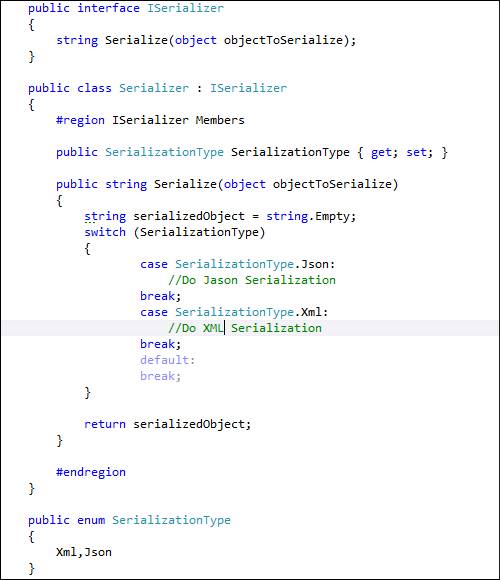

Image – Violation of Open Close Principle

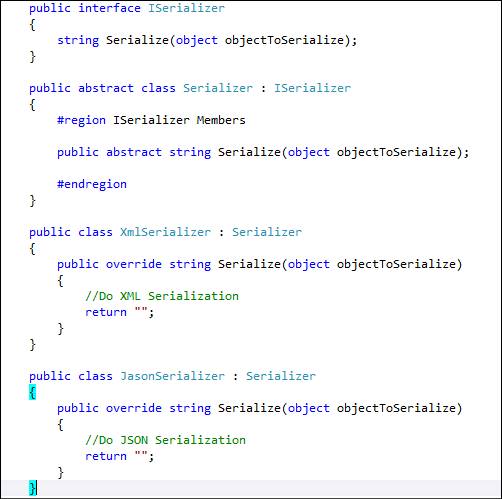

Image – Honoring Open Close Principle

Interior Architecture – Where to fit Air Conditioners:


As I have already said, there are so many concerns we will have to handle to construct a house. Among all those concerns very small concern like where to install your air conditioner in your bed room is no less important. Say, your architect designed the room so that you have a space for fitting air conditioner inside the window. During his design he thought of a window air conditioner and kept a place for that in the window. Now, the time changes, and you may like to install a bigger air conditioner or you may like to install a split ac replacing your old window one. What will you need to do?
One option is you change your window so that it allows you a bigger space for the ac. But you see if you do this, the size of the window may decrease which eventually may not be good for day light transition and air flow of your room.
So, ideal solution could be if the space for the air conditioner were not inside your window, rather into the wall, you could alter the space for your new ac in the wall engaging perhaps with very low skilled labor.

See the benefits here:
1. You do not need to change your window.
2. Your room will not be at risk of low ventilation and lighting.
Do you see the problem in the design where ac is to fit into the window? We all know that purpose of a window is to provide proper light and ventilation to your room. So, window should have been changed only if you need to adjust the lighting and ventilation. It was not good if you had to change your window because you needed to install a new ac.
This flaw in your build design has similarity with a very important software design principle. The principle says your objects should change for one and only one reason. In other words, your objects should always serve one and only one responsibility. Formally this principle is known as Single Responsibility Principle in software world.
More example of Single Responsibility Principle:
See the simple example below. Here 2 task is done by ApplicationSecurityContext class. One is authentication and the other is Login. You know in modern software world there could be many ways of authenticating users and also many ways to make the user logged to your application. Authentication can be done through database, windows authentication, single sign-on etc and login can be done through forms authentication, windows authentication, LDAP based authentication etc. So, it is natural that your application’s login and authentication mechanism can change. But if you implement both in the same class this class gets 2 very big concern of your application to manage. Here authentication is more of central concern of the system and login is closely related to the client interface of the application (Desktop app, Smart client app, Web app etc). In this situation we must not implement this 2 concern in same class and if we do it will clearly violate the single responsibility principle. And if we continue to mix up these type of concerns in a single class, it will become a BBOM gradually.

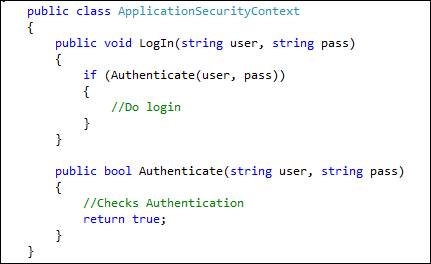

Image: Violating Single Responsibility Principle
What is the solution then?

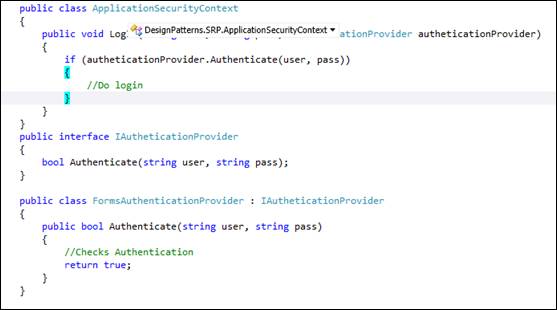

Image: Honoring Single Responsibility Principle
We can create a separate class for authentication. The best approach will be to have an interface like IAuthenticationProvider and implement your desired authentication implementing the interface. The FormsAuthenticationProvider class implements the forms authentication for your application. Later you can easily implement other mechanism of authentication if required. So, it is honoring both Single Responsibility Principle and Open Close Principle.

Designing the car parking area:


In Modern buildings car parking is one of the very important areas of concern. Your engineer and architect needs to design the piers of your building so that your basement or ground floor can accommodate as many cars as possible. While doing the design, they should consider the type of cars they should support. Normally in residential houses the zips could be the largest vehicle to support. So, your engineer should design the car parking so that each space supports light weight vehicles. Now, if your architect and engineers are not ver careful they may design the space only for sedan cars. The consequence of this, when you will need to accommodate your new prado in your car parking you cannot do that.

So, the design principle should be, each parking space should support one light weight vehicle. In that way it should also support any type of light weight vehicle whether it is a small car or a big prado jip.
This car parking concern also can describe another very important software design principle. The principle says, in a system of an object X is used and if object Y is subtype of object X then, in that system object X should be replaceable by object Y. More formally this principle is called Liskov's substitution principle in software world.
More Example of Liskov's Substitution Principle:

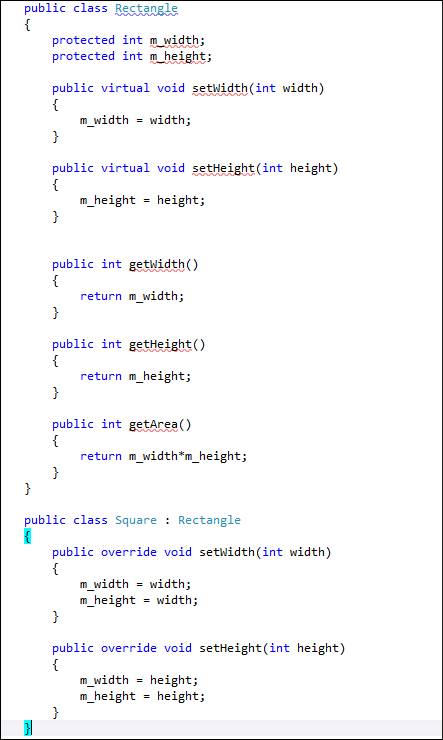

Liskov substitution principle basically says the inheritances that you create in your application must be correct. Here is the classic example for which the Liskov's Substitution Principle is violated. In the example 2 classes are used: Rectangle and Square. Let's assume that the Rectangle object is used somewhere in the application. We extend the application and add the Square class. The Square class is returned by a factory pattern, based on some conditions and we don't know the exact what type of object will be returned. But we know it's a rectangle. We get the Rectangle object, set the width to 5 and height to 10 and get the area. For a rectangle with width 5 and height 10 the area should be 50. Instead the result will be 100. (This example is taken from http://www.oodesign.com/liskov-s-substitution-principle.html )

Image – Violating Liskov Substitution Principle

Electricity Distribution Lines:


Among many of the utilities that you must have in your building electricity is perhaps one of the most important one. Your engineer and architect will perhaps need to work with an electrical engineer to design the electricity distribution line of your building. One approach for this could be, the whole supply of current in your building will come from a single root. But you see this will make the whole supply chain too complicated. It will make it very difficult to manage, extend and trouble shoot. So, what should be the solution?
In fact the electricity line should be interfaced in multiple segments. First of all each floor may have a separate root and then perhaps the best way would be to have each room having separate root. If you follow this design principle, it will be very easy for you to manage and trouble shoot your electric supply lines.
Again, this has similarity with yet another important software design principle. This principle says once an interface has become too 'fat' it needs to be split into smaller and more specific interfaces so that any clients of the interface will only know about the methods that pertain to them. This principle is known as Interface Segregation Principle in software world.
More example of Interface Segregation Principle:
Interface segregation principle is closely related with single responsibility principle I explained earlier in this write-up. Here creating a different interface for IAuthenticationProvider segregating the authentication concern from the login mechanism. In the same way whenever we see a single interface is becoming too heavy and entertaining more than one concern we should segregate the interface and create interfaces for each individual task to perform. Please see the Single Responsibility Principle code block for this example.

Overall building development process:


So far, we have talked about few of the concerns of your building construction. Now let us talk about the process of the building construct. You have engaged the civil engineer and the architect and they have completed the design. Now, the actual construction will start. How will the massive construction work will go through? Definitely there be a team leader. The team leader will eventually have different teams. For example construction workers, electricians, purchase team and so on. Now, to each team the responsibility will be distributed and each team will have a team leader itself. So, the team leader of the whole construction work will just know the individual team leaders of each team. He does not need to know who the team members are working in each team. In this way, the dependencies among different teams are abstracted to individual team leaders. So, any change in the requirement and design will not need to be transmitted to all of the workers working in the project. The job of the works is just to implement what their team leaders ask to do.
So, the principle team leader does not depend on different teams through the team members rather he depends on different teams through the individual team leaders. And individual workers depend on their team leader to know what they need to implement.
This process of building construction can demonstrate another greatly important software design principle. The principle says:
1. High-level modules should not depend on low-level modules. Both should depend on abstractions.
2. Abstractions should not depend upon details. Details should depend upon abstractions.
--Wikipedia
The principle is known as Dependency Inversion Principle.
More example of Dependency inversion principle:
We actually already have seen code example of Dependency Inversion Principle. Again you if look at the code block for single responsibility principle you will see a parameter of type IAutheticationProvider is passed to the method LogIn. Here the client of this LogIn method does not need to know the actual implementation of IAutheticationProvider directly rather it gets the authentication through the abstract layer of IAutheticationProvider interface.

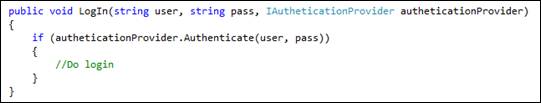

Image - Dependency Inversion Principle
In modern software world there are quite a few dependency injection container that facilitates us to program honoring dependency inversion principle. Some of those are Unity, NInject, Windsor etc. I have plan to have a separate write up on this later. So, keep following 

So far in this write-up I have tried to explain 5 very important design principles that we should always honor while designing and programming our softwares. Collectively these principles are called SOLID.
Image - SOLID copied from wikipedia
Beside these there are some other principles that we should have knowledge about. But again I have plan to write on those later. So, keep watching J.
Thanks for your patience to read this write-up. I would appreciate your comments and feedbacks. Discussions always can boost our concepts and decision making capability for software design.

Wednesday, February 8, 2012

Two very common design patterns to show how to think through simple software design challanges.

Design Pattern is perhaps the mostly used buzz word for software professionals. The geeks of the industry always talk about it and the novices got tempted to learn design patterns reading the theory. There are lot of books and articles on different design patterns. In many interviews you may learn questions like do you know design pattern? Do you know XXX design pattern? Thus perhaps many software developers do have a look on design pattern tutorials before any interview to face. But really, you cannot learn design pattern in this way. As a matter of fact design pattern is not something to learn.

Design Pattern is not something to learn! Yes. Design patterns are nothing but some great ways to solve some classic software design scenarios. If you know the principles of software design and give effort to solve the design challenges in your projects, you will find, eventually you have used one or more design patterns even without knowing about that. And this is the way all the design patterns evolved. If a great software designer solves a design challenge there is every possibility, a design pattern will be used or may be a new design pattern will be created!

To me design patterns are some guidelines that all software developers should know so that when he works in any project he can solve the design challenges easily. So, it is more to be habituated and practiced than to be learned. When you read about any design pattern you should try to grasp what are the problems that design pattern is trying to solve and what was the thinking process to come up with that design pattern. And when you work in your project, before jump to code you need to find what are the design challanges exist in your work. Then, you should solve those design challenges and then start coding. During thinking about your design challenges if you remember any similar challenge that you found while reading about any design pattern go back to that, have a look on that and if it really solves your problem use that. Or perhaps use that in a way that suits in your scenario. The more you practice this procedure, less you will go back to read about patterns and better your designs will become.

I think you have already realized that, this write-up is just yet another write-up on Design Patterns. Design patterns are not any technology. Design patterns are actually some patterns of thinking to come up with a flawless design of your software requirements. Here I will try to derive towards 2 of the most frequently used design patterns from some scenarios. I will not tell the name of the patterns at the beginning of the examples so that your reading does not become tempted by some existing theoretical knowledge on these design patterns. You will find the pattern name at the end of each discussion.

Pattern 1: Let’s say you have developed a new operating system for smart phones named “Smart OS”. Now you want general people to use smart phones using this operating system. What will you do? You will create a specification for the OS and some instructions to manufacture the phone.

Let’s assume all the people of the world are capable enough to manufacture a phone using a spec. So, if you want to sell the OS to 1000 persons, the solution is all of those 1000 persons will learn the spec, create the phone and use it. Does this sound practical? Now, if you release a new version of "Smart OS"? Will all of those 1000 person learn the new spec again and update their phone? What if you need more customers? It really sounds weird. What is the solution then? I am sure you all know the solution.

For your new OS you will release the spec to a phone manufacturing company or maybe you will form one of your own (Like Apple builds iPhone on top of their own OS). The company will manufacture the phone using your OS and the end users will buy this from the manufacturer. So what should be the expected benefits here?

  1. Only the manufacturer company will need to know how to build the phone.
  2. If the spec changes, the manufacturer will learn this and will distribute this to all the customers.
  3. The price becomes less.
  4. The end user will just use the phone and will not need to know how this is created.
I am sure already you are thinking the example is too obvious. But similar scenario comes when we develop software. Sometimes, the situations are not too obvious.

For example, you are required to develop an html report generator. If you jump start to the code every possibility is that, you will create a class named HtmlReportGenerator. That will have a method named GenerateReport. This method will implement the report generation functionality. The client app will create an instance of the Html report generator class and will use the GenerateReport function to create the report.


















Ok! That works fine. Now, your client wants a pdf report from you. What will you do?


Option 1: Create a PdfReportGenerator class.
Option 2: Re-factor the code. Remove HtmlReportGenerator. Instead create a general class
ReportGenerator. Create 2 methods. GenerateHtmlReport and GeneratePdfReport.
Option 3: Re-factor the code. Remove HtmlReportGenerator. Instead create a general class
ReportGenerator. Create the function GenerateReport as GenerateReport(ReportType rptType) taking report type as parameter.

Well, now if client wants reports in word format, xl format and few more formats, what will you do? Will you continue re-factoring? Or, will continue changing your report generator function? If you know the standard software design principles, these approaches will be a violation of Open-Close principle and Single Responsibility principle. Overall this will be a complete mess (BBOM).

Now, let's relate this with smart phone OS scenario. Though it was not very obvious, the Report generator example really has similarity with phone OS. So how could be the solution?

Simple! You create a company who will serve you the reports (As like mobile manufacturer company). You will serve data to the company and will tell which format of report you want. The company will deliver you the report. If new report format comes to the scenario, the company will learn how to do that and as a client you have to do nothing but ask for the correct type of report. See the code example below.


Now, using this design you have achieved the following benefits when a new report format needs to be added:



  1. You do not need to modify the ReportGenerator base class.
  2. You do not need to know how other report formats are handled.
  3. You do not need to know how to get instance of the report generator of your desired format.
  4. Your code becomes clean and free from BBOM.
Here you have one class named "ReportGeneratorCompany". As like the mobile phone manufacturer company for "Smart OS", ReportGeneratorCompany will know which format of report you need (The OS), It will create a report generator for you (perhaps the phone manufacturer team for "Smart OS" ) and the report generator will generate the report for you.

So, in both case ("Smart OS" and Report Generator), we saw how we can handle the scenario in smarter way. And believe me whenever, you do anything smartly in software, you are using a design pattern or as I said perhaps you are creating a new design pattern. I am sure many of you already have realized which design pattern I had used for report generator. Yes. This is Factory Pattern. Factory pattern is one of the widely used and simplest object creational design patterns. If the name of the "ReportGeneratorCompany" class were "ReportGeneratorFactory", it would have been more obvious to you.

Here, the concept of the factory pattern is, you do not create instance of your object directly, rather you abstract away the instantiation logic in a factory class. When you need your object, you will ask the factory class and the factory class will provide you the instantiated object.

There are few other creational design patterns widely accepted as standards in software world. Those are: Factory Method, Abstract Factory, Builder, Prototype, etc.  In this write up we will discuss on 1 more creational design pattern. As before I would not tell now which one is that, rather I would like to derive to that pattern from design challenges.

Pattern 2: Let’s talk about the “Smart OS” again. Say in your smart phone OS you have some location specific features. For example you have location specific language support, you have location specific theme support, you have location specific hardware support etc. When you develop your OS, you listed out the features you are going to provide in your OS.  Now, the situation comes where few features will have different implementation based on your location. How will you handle this scenario?

Option 1: One way to solve this situation is have conditions in your Service provider classes (Language Service Provider, Theme Provider etc) and load the services based on the condition. In this case you have to provide the location information to the service providers.

















































What is your opinion on the above approach? I can see the following problem here:
  1. If a new location needs to be added we will have to modify the Service classes, which is a clear violation of Open-Close Principle.
  2. It is possible to load the OS with language from USA and theme from UK, which should not be allowed.
  3. Code is un-organized and no point of extension is available.
This type of scenario comes every now and then in our software development practices. Here requirement shows that few objects need to be instantiated as a group. That means, if the location is USA, you must load all the USA based services for your device. So, you must enforce this.
In our previous pattern (Factory pattern) we saw how we can separate the object creation logic from the client using a factory. Should we be able to do something similar for the location based services? Well Let us try.

1. First of all we will need to abstract away the definition of the services. So, let’s create 2 abstract classes for language service and theme service.
2. Create concrete classes for different services based on location, inheriting from the abstract service classes. For example UsaThemeService class and UkThemeService class inheriting from ThemeService abstract class.




































3. Create an abstract factory class which will have abstract definition of the methods to create all the services that needs to be created based on location.
4. Create concrete factory classes inheriting from the abstract factory class to create specific location based services.




5. Create the class for LocationBasedService. This class will create all the services instances based on the location provided and will load the services.
6. The client will know the location and will create service factory of that specific location. Eventually client will load the services.























The above way of implementation can further be improved using few more patterns perhaps like strategy, DI etc. However, that is out of the scope of this discussion.

So, we have created the location based services for the “Smart OS” in a new approach than the 1st approach we described. The new approach tries to solve the design challenges that we had on the first approach.
  1. Now, adding a new location based service is easy. You implement the services for the new location and as you already know what are the services you will need to implement from the LocationBasedServiceFactory you will not miss anyone.
  2. This implementation will enforce you to initiate all the services of the same location and will prohibit you to initiate services from mixed locations.
  3. Service instantiation is abstracted away from the service itself, so, the client of the services do not need to know how to instantiate the services.
  4. Your code has become extensible and manageable.
I am sure many of you already realized which pattern I have used here. Yes the pattern is “Abstract Factory”.

I would like to summarize the abstract factory pattern as it is little more complicated than the simple factory pattern. Following are the participators in the abstract factory pattern.

AbstractFactory – Abstract class to declare operations (LocationBasedServiceFactory) that create abstract products (theme service, language service).
ConcreteFactory – Implements AbstractFactory class to implement operations to create concrete products (UsaBaseServiceFactory).
AbstractProduct - Declares an abstract class for a type of product objects (ThemeService).
Product - Defines a product to be created by the corresponding ConcreteFactory; it implements the AbstractProduct class.
Client - uses the abstract classes declared by the AbstractFactory and AbstractProduct classes.

In this article, I have derived to explain 2 creational design patterns with examples. My goal was to help you gearing your thinking process to solve a problem in more patterned way. I hope to write on few structural and behavioral patterns in coming days too. More practice you do to achieve the best architecture for your work, the better your architectures will be.

I will appreciate your comments and feedbacks on this.
